Spare Parts >GYARUS16R90B-G07

Spare Parts

GYARUS16R90B-G07 EDP:503935

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock
Unit of Length M

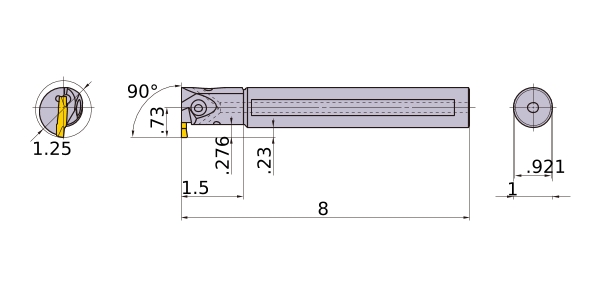

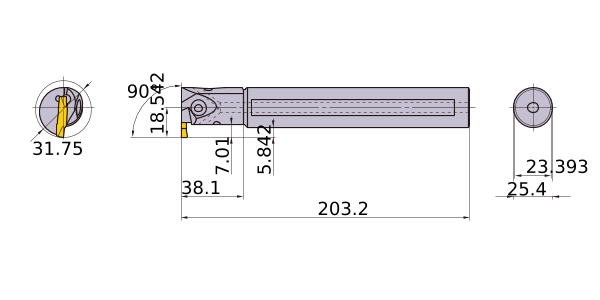

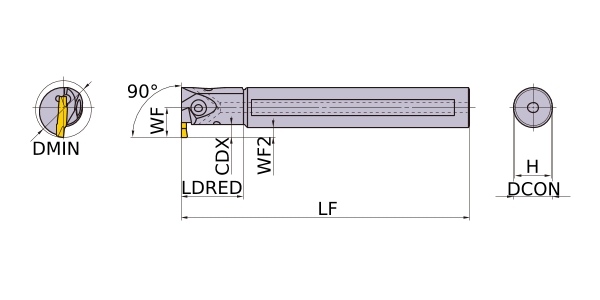

DMIN 31.75
DCON 25.4
LF 203.2
CDX 7.01
LDRED 38.1
WF 18.542
H 23.393
CW 3.988
WF2 5.842
