Spare Parts >IMX10-U10N014L070C

Spare Parts

IMX10-U10N014L070C EDP:675788

Product Information

The actual product may differ from the displayed image.

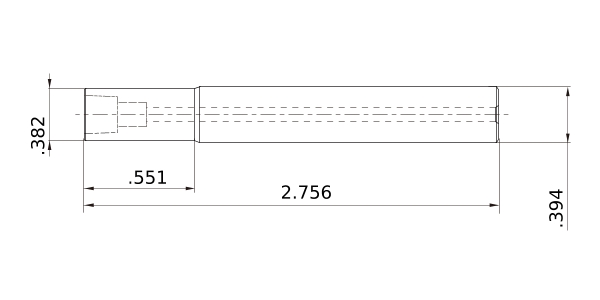

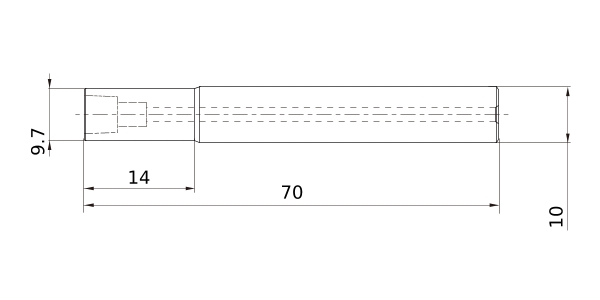

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Stock

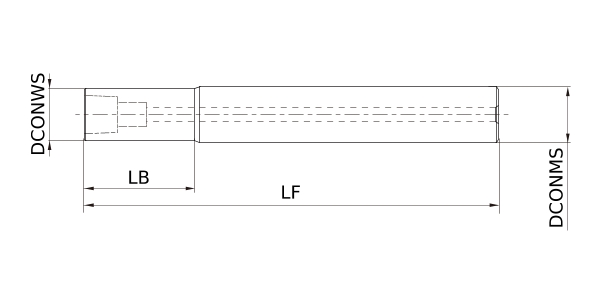

Unit of Length I
DCONWS .382
DCONMS .394
LF 2.756
LB .551
3D Detail Model (STP,STL)
CAD data name Download
IMX10-U10N014L070C
