Spare Parts >IMX25-U25N087L160C

Spare Parts

IMX25-U25N087L160C EDP:675876

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Stock

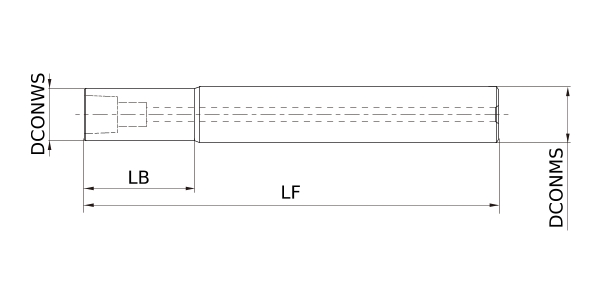

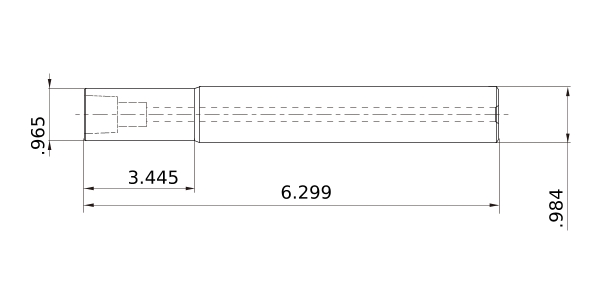

Unit of Length I
DCONWS .965
DCONMS .984
LF 6.299
LB 3.445
3D Detail Model (STP,STL)
CAD data name Download
IMX25-U25N087L160C
CAD
