Spare Parts >IMX20-U20N110L180C

Spare Parts

IMX20-U20N110L180C EDP:806371

Product Information

The actual product may differ from the displayed image.

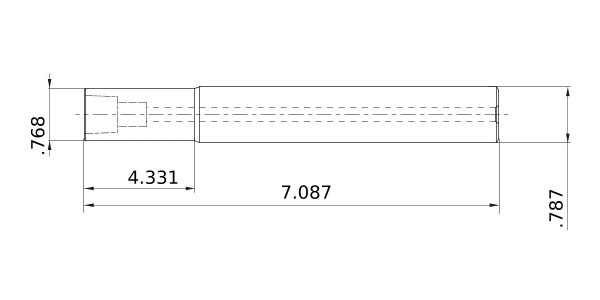

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Stock
Unit of Length I
DCONWS .768
DCONMS .787
LF 7.087
LB 4.331
3D Detail Model (STP,STL)
CAD data name Download
IMX20-U20N110L180C
