Spare Parts >GYPL2525M00-K25

Spare Parts

GYPL2525M00-K25 EDP:671111

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand L
Stock

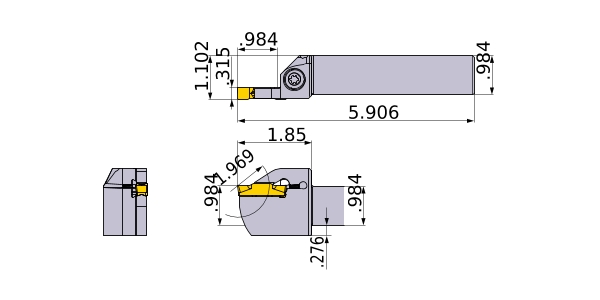

Unit of Length I
CUTDIA 1.969
B .984
LF 5.906
LH 1.85
CDX .984
WF 1.102
H .984
HF .984
HBH .276
CW .315
2D Model (DXF)
