Spare Parts >GYSR1616JX00-E17

Spare Parts

GYSR1616JX00-E17 EDP:809029

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock
Unit of Length I

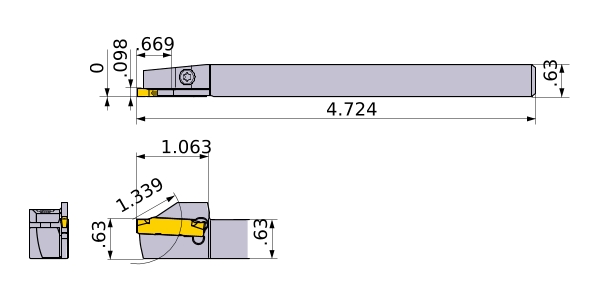

CUTDIA 1.339
B .63
LF 4.724
LH 1.063
CDX .669
H .63
HF .63
CW .098
2D Model (DXF)
CAD data name Download
GYSR1616JX00-E17
