Spare Parts >GYSL1010JX00-E11

Spare Parts

GYSL1010JX00-E11 EDP:809168

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand L
Stock
Unit of Length I

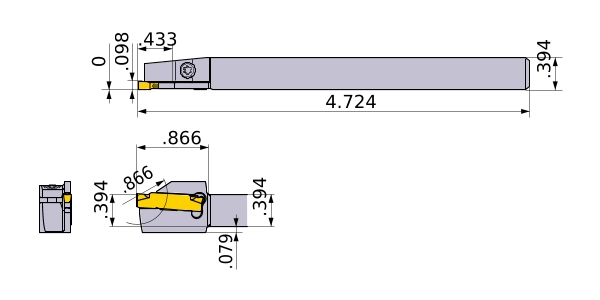

CUTDIA .866
B .394
LF 4.724
LH .866
CDX .433
H .394
HF .394
HBH .079
CW .098
2D Model (DXF)
CAD data name Download
GYSL1010JX00-E11
CAD
