Spare Parts >GYSL2012JX00-F18

Spare Parts

GYSL2012JX00-F18 EDP:809230

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand L
Stock
Unit of Length I

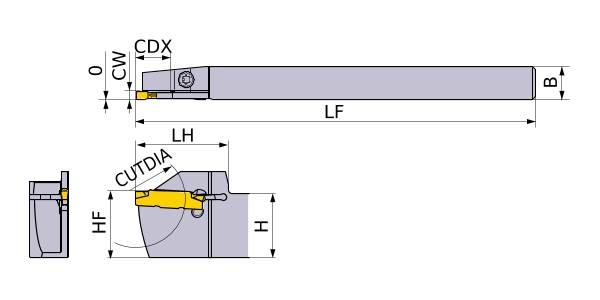

CUTDIA 1.417
B .472
LF 4.724
LH 1.102
CDX .709
H .787
HF .787
CW .118
