Spare Parts >GYSLUS12B00-F17

Spare Parts

GYSLUS12B00-F17 EDP:809601

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand L
Stock
Unit of Length M

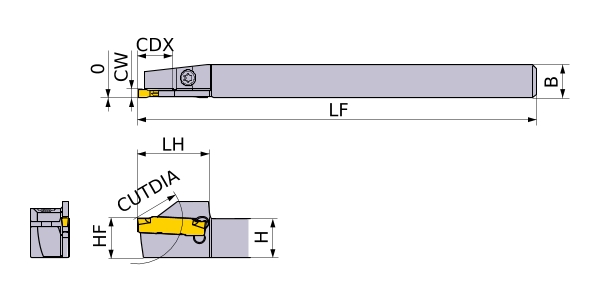

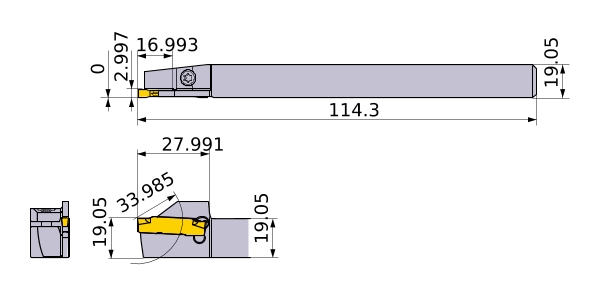

CUTDIA 33.985
B 19.05
LF 114.3
LH 27.991
CDX 16.993
H 19.05
HF 19.05
CW 2.997
2D Model (DXF)
CAD data name Download
GYSLUS12B00-F17
CAD
