Spare Parts >IMX16-A0750N343L59C

Spare Parts

IMX16-A0750N343L59C EDP:827454

Product Information

The actual product may differ from the displayed image.

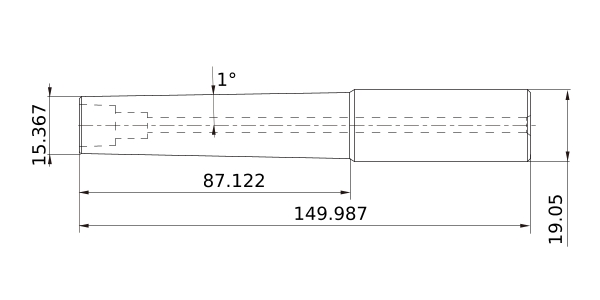

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Stock

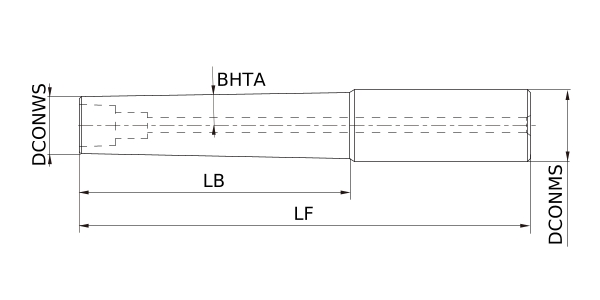

Unit of Length I
DCONWS .605
DCONMS .75
BHTA 1°
LF 5.905
LB 3.43
3D Detail Model (STP,STL)
CAD data name Download
IMX16-A0750N343L59C
