Spare Parts >IMX16-U16N016L080S

Spare Parts

IMX16-U16N016L080S EDP:10521076

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Stock
Unit of Length I

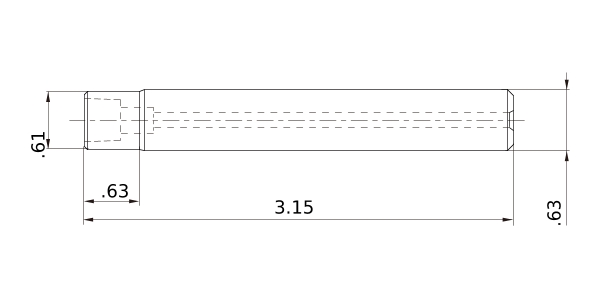

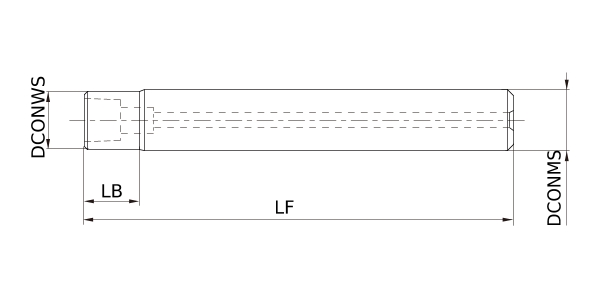

DCONWS .61
DCONMS .63
LF 3.15
LB .63
3D Detail Model (STP,STL)
CAD data name Download
IMX16-U16N016L080S
CAD
