Spare Parts >SCU16M12S125S

Spare Parts

SCU16M12S125S EDP:10533284

Product Information

The actual product may differ from the displayed image.

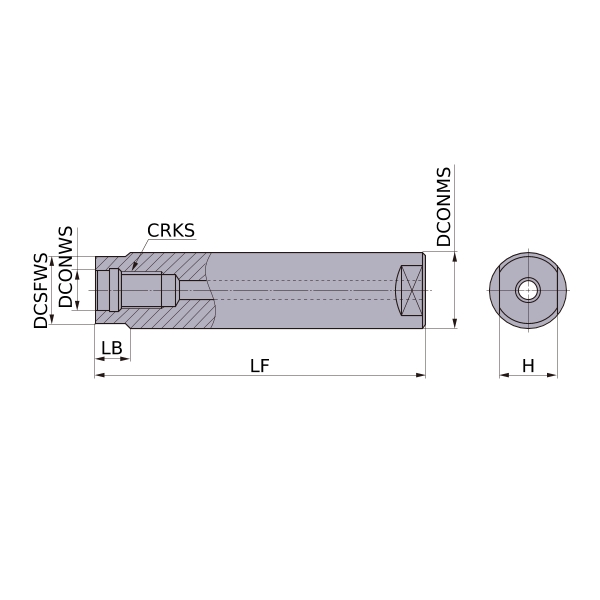

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Stock

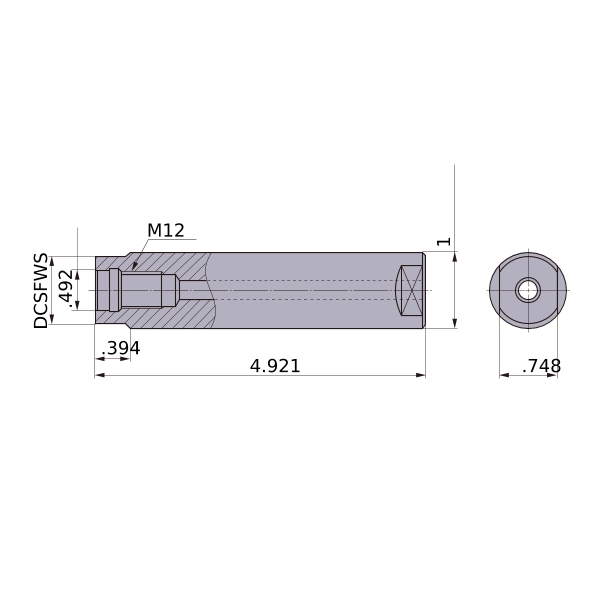

Unit of Length I
DCONWS .492
DCONMS 1
BD .925
LF 4.921
LB .394
H .748
WT 0.4
CRKS M12
