SCU20M16S140SW EDP:10533383

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Stock
Unit of Length I

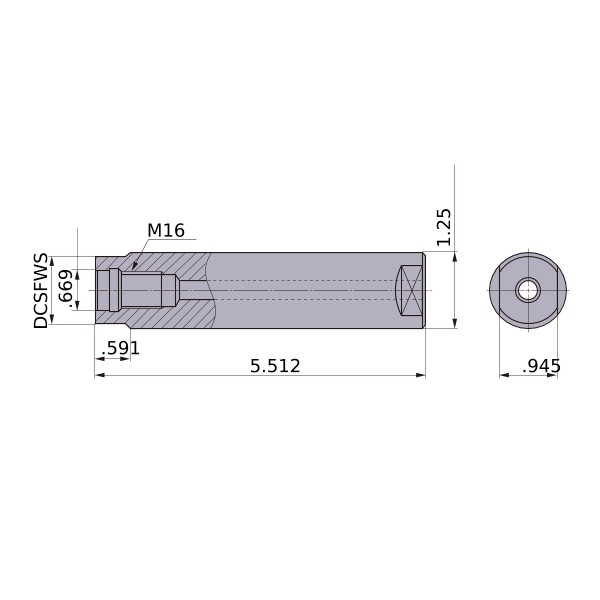

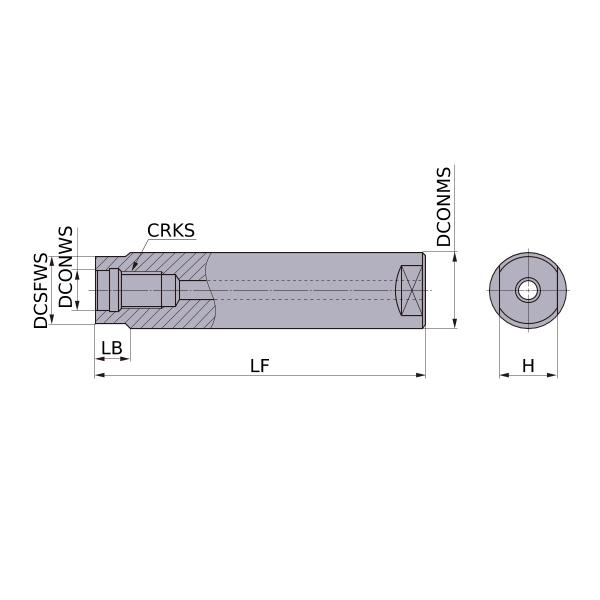

DCONWS .669
DCONMS 1.25
BD 1.122
LF 5.512
LB .591
H .945
WT 1.4
CRKS M16
2D Model (DXF)
CAD data name Download
SCU20M16S140SW
