Spare Parts >SLV200085050A

Spare Parts

SLV200085050A EDP:23839830

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Stock
Unit of Length M

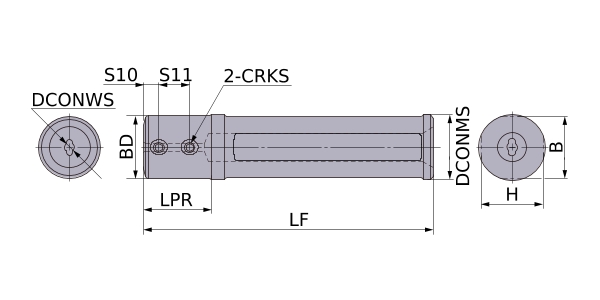

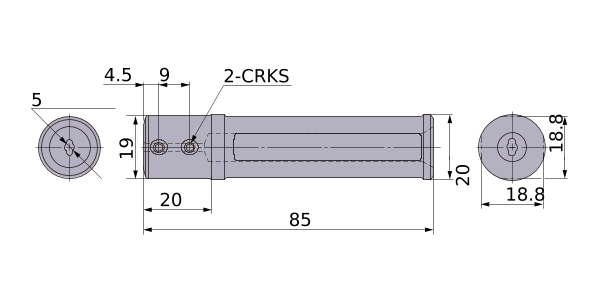

DCONWS 5
DCONMS 20
BD 19
B 18.8
LF 85
LPR 20
H 18.8
S10 4.5
S11 9
2D Model (DXF)
CAD data name Download
SLV200085050A
