Turning Insert >BTAT605000RX

Turning Insert

BTAT605000RX EDP:258239

Product Information

The actual product may differ from the displayed image.

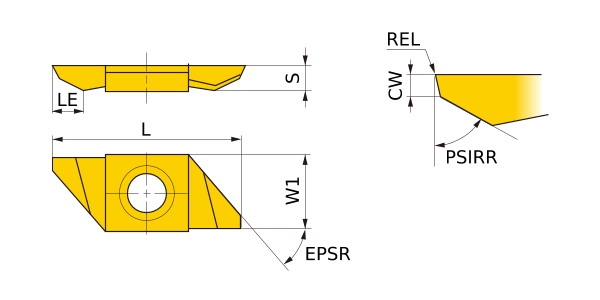

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade VP15TF
ANSI BTAT605000RX
Sales unit 5
Hand R
Stock

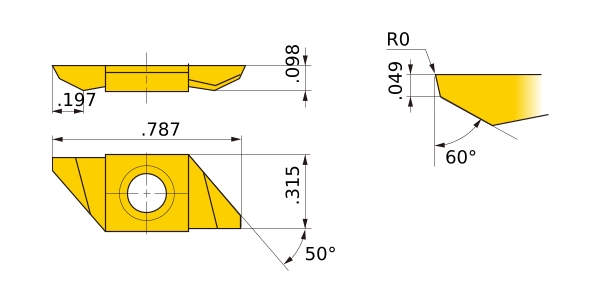

Unit of Length I
EPSR 50°
PSIRR 60°
LE .197
L .787
W1 .315
CW .049
S .098
CF 0
REL 0
Breaker flat_top
Show more

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.

  • External Holder
