Turning Insert >BTBT604501R-B
BTBT604501R-B EDP:258247
The actual product may differ from the displayed image.

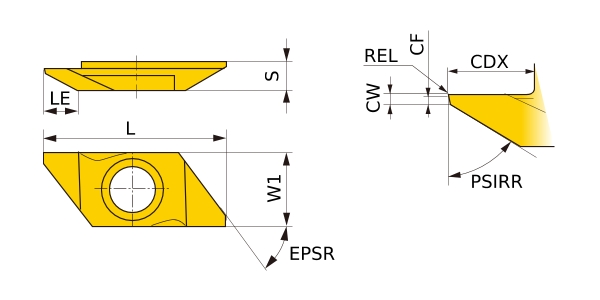

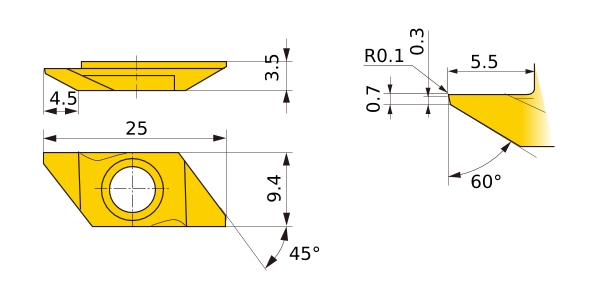

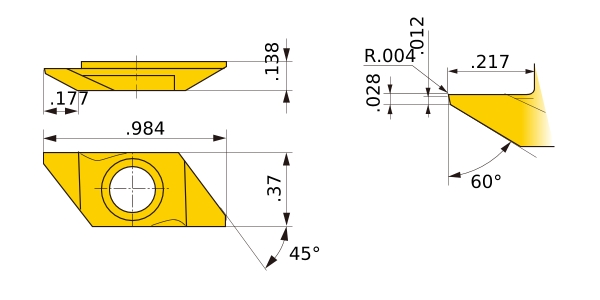

For details, please check the dimensions below.
| Diameter (Unit) | |
|---|---|
| Name of Grade | Carbide |
| Grade | VP15TF |
| ANSI | BTBT604501R-B |
| Sales unit | 5 |
| Hand | R |
| Stock |
|
| Unit of Length | M |
| EPSR | 45° |
| PSIRR | 60° |
| CDX | 5.5 |
| LE | 4.5 |
| L | 25 |
| W1 | 9.4 |
| CW | 0.7 |
| S | 3.5 |
| CF | 0.3 |
| REL | 0.1 |
| Breaker | B |
| Classification of Grades | ||
|---|---|---|
| Coated・Carbide | MS6015 |
|
Stock
:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
External Holder
