Turning Insert >BTBT606000L
BTBT606000L EDP:265359
The actual product may differ from the displayed image.

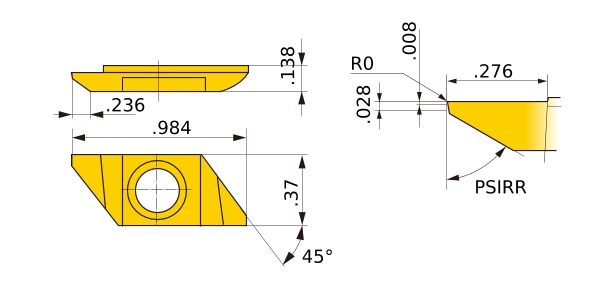

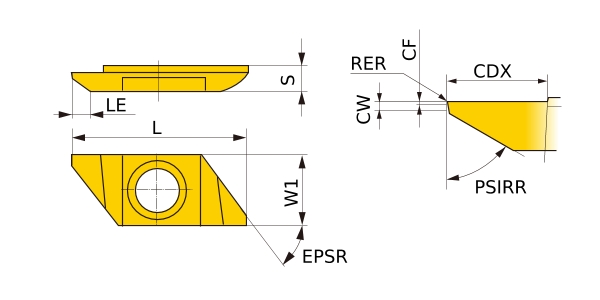

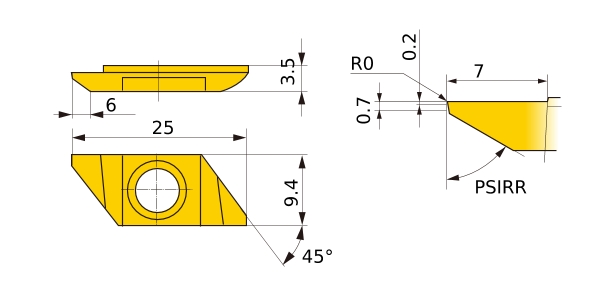

For details, please check the dimensions below.
| Diameter (Unit) | |
|---|---|
| Name of Grade | Carbide |
| Grade | VP15TF |
| ANSI | BTBT606000L |
| Sales unit | 5 |
| Hand | L |
| Stock |
|
| Unit of Length | I |
| EPSR | 45° |
| PSIRL | 60° |
| CDX | .276 |
| LE | .236 |
| L | .984 |
| W1 | .37 |
| CW | .028 |
| S | .138 |
| CF | .008 |
| RER | 0 |
| Breaker | flat_top |
Stock
:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
External Holder
