Turning Insert >CCGW21.5V5

Turning Insert

CCGW21.5V5 EDP:293464

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Cermet
Grade NX2525
Order Number CCGW0602V5
Sales unit 10
Hand N
Stock
Unit of Length I

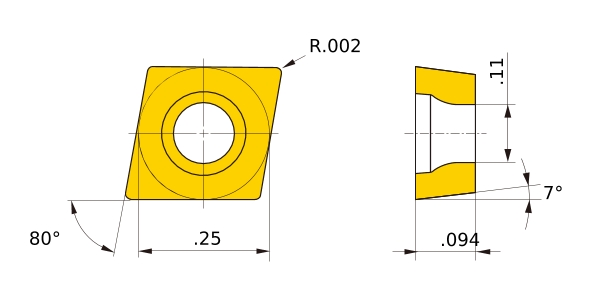

D1 .11
IC .25
EPSR 80°
AN 7°
S .094
RE .002
Breaker flat_top
2D Model (DXF)
CAD data name Download
CC0602V5N
CAD
