Turning Insert >CPGT080204

Turning Insert

CPGT080204 EDP:296155

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade PCD
Grade MD220
ANSI CPGT2.51.51
Sales unit 1
Hand N
Stock
Unit of Length M

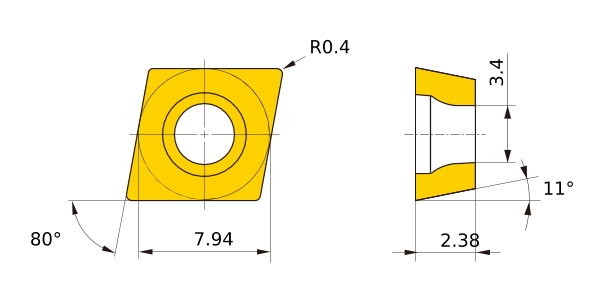

D1 3.4
IC 7.94
EPSR 80°
AN 11°
LE 3.6
S 2.38
RE 0.4
Breaker standard
Classification of Grades
Non-coated・Carbide HTi10
2D Model (DXF)
CAD data name Download
CP080204N
CAD
