Turning Insert >DCET32.50.2LSN

Turning Insert

DCET32.50.2LSN EDP:271812

Product Information

The actual product may differ from the displayed image.

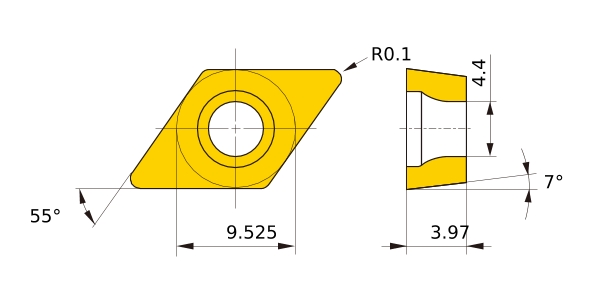

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Cermet
Grade NX2525
Order Number DCET11T301L-SN
Sales unit 10
Hand L
Stock
Unit of Length I
D1 .173
IC .375
EPSR 55°
GAN 20°
AN 7°
LBB .059
LE .449
S .156
RE .004
Breaker L-SN
Classification of Grades
Coated・Carbide VP15TF
Non-coated・Carbide HTi10
2D Model (DXF)
CAD data name Download
DC11T301L
