Turning Insert >DCGT21.50.2RSN

Turning Insert

DCGT21.50.2RSN EDP:245631

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade VP15TF
Order Number DCGT070201R-SN
Sales unit 10
Hand R
Stock
Unit of Length I

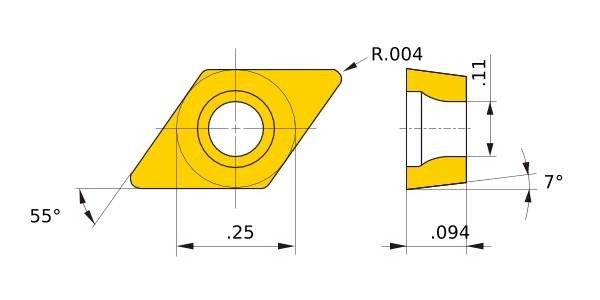

D1 .11
IC .25
EPSR 55°
GAN 20°
AN 7°
LBB .039
LE .138
S .094
RE .004
Breaker R-SN
2D Model (DXF)
CAD data name Download
DC070201R
CAD
