Turning Insert >DCGT32.50.5LF

Turning Insert

DCGT32.50.5LF EDP:294248

Product Information

The actual product may differ from the displayed image.

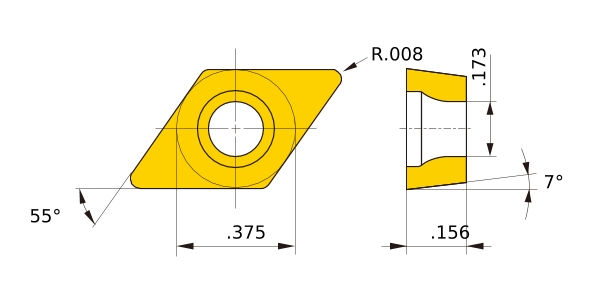

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Name of Grade Cermet
Grade AP25N
Order Number DCGT11T302L-F
Sales unit 10
Hand L
Unit of Length I
D1 .173
IC .375
B7 20
EPSR 55°
GAN 14°
LBB .039
LE .118
S .156
RE .008
Breaker L-F
Classification of Grades
Coated・Carbide VP15TF
Non-coated・Cermet NX2525
Non-coated・Carbide HTi10
3D Detail Model (STP,STL)
CAD data name Download


:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
