Turning Insert >NP-CCMW04T002

Turning Insert

NP-CCMW04T002 EDP:296286

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade PCD
Grade MD220
ANSI NP-CCMW04T002
Sales unit 1
Hand N
Stock
Unit of Length I

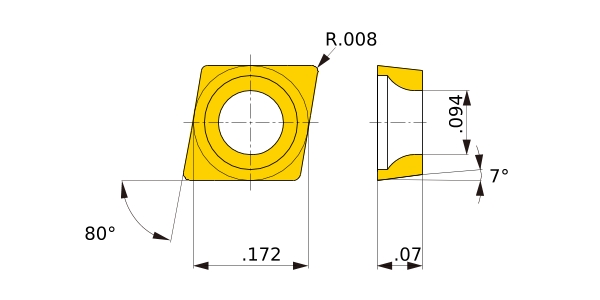

D1 .094
IC .172
EPSR 80°
AN 7°
LE .059
S .07
RE .008
Breaker flat_top
2D Model (DXF)
CAD data name Download
CCMW04T002N
CAD
