Turning Insert >NP-CPMH080204

Turning Insert

NP-CPMH080204 EDP:296331

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade PCD
Grade MD220
ANSI NP-CPMH2.51.51
Sales unit 1
Hand N
Stock
Unit of Length M

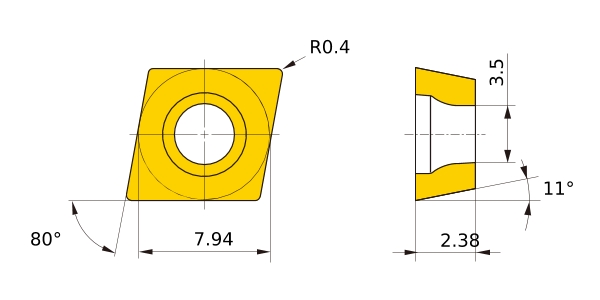

D1 3.5
IC 7.94
EPSR 80°
AN 11°
LE 1.8
S 2.38
RE 0.4
Breaker flat_top
