Turning Insert >NP-DCMT32.50.5RF

Turning Insert

NP-DCMT32.50.5RF EDP:296454

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade PCD
Grade MD220
Order Number NP-DCMT11T302R-F
Sales unit 1
Hand R
Stock
Unit of Length I

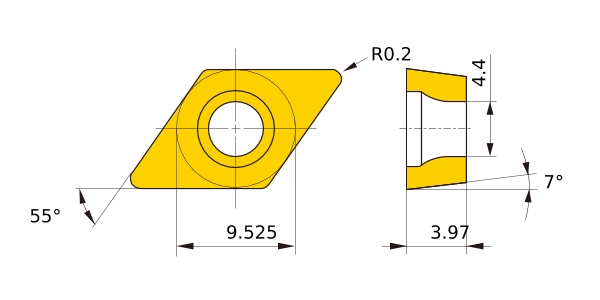

D1 .173
IC .375
EPSR 55°
AN 7°
LE .055
S .156
RE .008
Breaker R-F
