Turning Insert >NP-TPMH080204L-F

Turning Insert

NP-TPMH080204L-F EDP:296577

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade PCD
Grade MD220
ANSI NP-TPMH1.51.51LF
Sales unit 1
Hand L
Stock
Unit of Length M

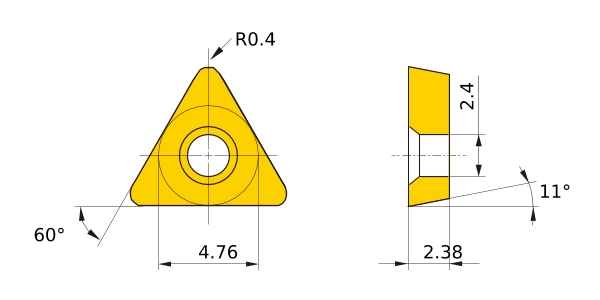

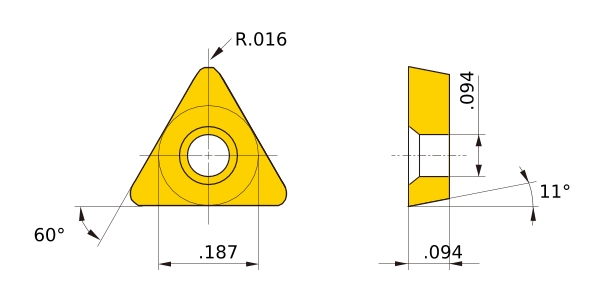

D1 2.4
IC 4.76
EPSR 60°
AN 11°
LE 1.6
S 2.38
RE 0.4
Breaker L-F
