Turning Insert

SPMN631 EDP:106171

Product Information

The actual product may differ from the displayed image.

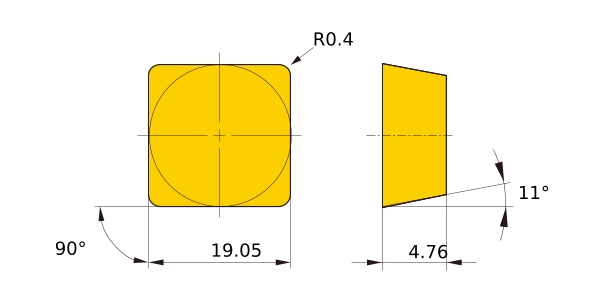

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade UTi20T
Order Number SPMN190404
Sales unit 10
Hand N
Stock

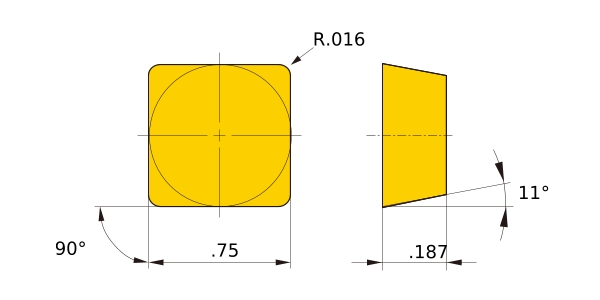

Unit of Length I
IC .75
EPSR 90°
AN 11°
S .187
RE .016
Breaker flat_top
2D Model (DXF)
CAD data name Download
SP190404N
CAD
