Turning Insert >TPGH220.5RFS

Turning Insert

TPGH220.5RFS EDP:295013

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade HTi10
Order Number TPGH110302R-FS
Sales unit 10
Hand R
Stock
Unit of Length I

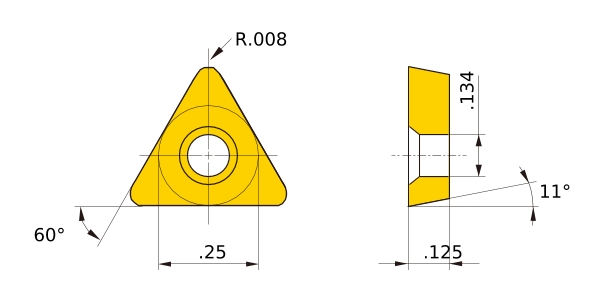

D1 .134
IC .25
B7 20
EPSR 60°
GAN 15°
AN 11°
LBB .055
LE .165
S .125
RE .008
Breaker R-FS
Classification of Grades
Coated・Carbide VP15TF
Non-coated・Cermet NX2525
2D Model (DXF)
CAD data name Download
TP110302R
CAD
