Turning Insert >TPGX1.81.50.5L

Turning Insert

TPGX1.81.50.5L EDP:108306

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade HTi10
Order Number TPGX090202L
Sales unit 10
Hand L
Stock
Unit of Length I

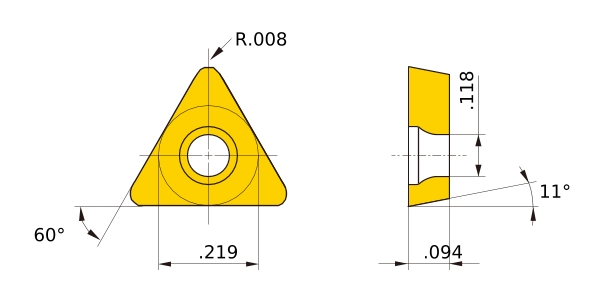

D1 .118
IC .219
B7 20
EPSR 60°
GAN 10°
AN 11°
LBB .063
LE .189
S .094
RE .008
Breaker L
Classification of Grades
Non-coated・Cermet NX2525
Non-coated・Carbide UTi20T
2D Model (DXF)
CAD data name Download
TP090202L
CAD
