Turning Insert >VBET221LSR

Turning Insert

VBET221LSR EDP:270342

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade HTi10
Order Number VBET110304L-SR
Sales unit 10
Hand L
Stock
Unit of Length I

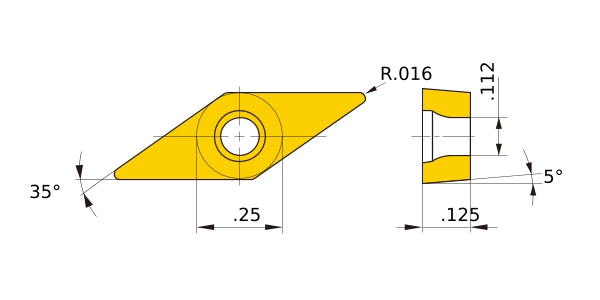

D1 .112
IC .25
EPSR 35°
GAN 30°
AN 5°
LBB .098
LE .299
S .125
RE .016
Breaker L-SR
Classification of Grades
Coated・Carbide VP15TF
Non-coated・Cermet NX2525
2D Model (DXF)
CAD data name Download
VB110304L
