Turning Insert >VBET221RSR

Turning Insert

VBET221RSR EDP:270406

Product Information

The actual product may differ from the displayed image.

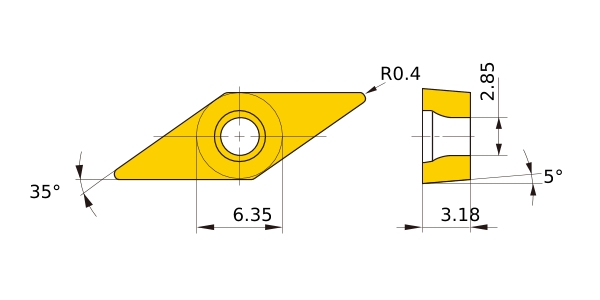

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade HTi10
Order Number VBET110304R-SR
Sales unit 10
Hand R
Stock

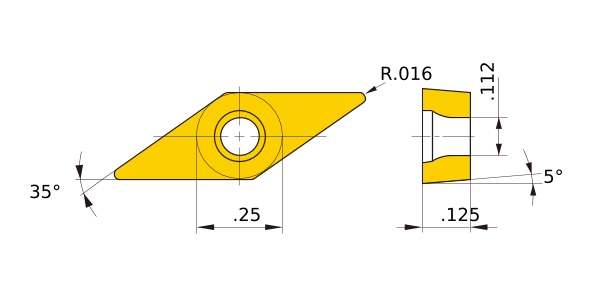

Unit of Length I
D1 .112
IC .25
EPSR 35°
GAN 30°
AN 5°
LBB .098
LE .299
S .125
RE .016
Breaker R-SR
Classification of Grades
Coated・Carbide VP15TF
Non-coated・Cermet NX2525
3D Detail Model (STP,STL)
CAD data name Download
VB110304R
