Turning Insert >VCGT1.51.50.5LF

Turning Insert

VCGT1.51.50.5LF EDP:295654

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade VP15TF
Order Number VCGT080202L-F
Sales unit 10
Hand L
Stock
Unit of Length I

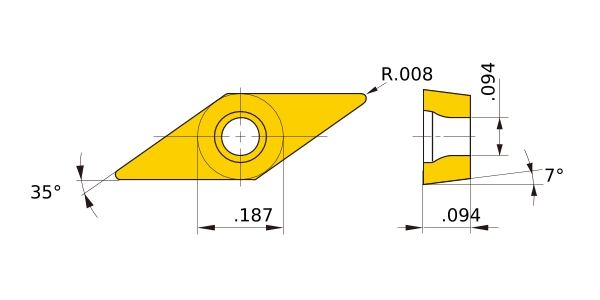

D1 .094
IC .187
EPSR 35°
GAN 13°
AN 7°
LBB .031
LE .098
S .094
RE .008
Breaker L-F
Classification of Grades
Coated・Cermet AP25N
Non-coated・Cermet NX2525
Non-coated・Carbide HTi10
2D Model (DXF)
CAD data name Download
VC080202L
CAD
