Turning Insert >VDGX321L

Turning Insert

VDGX321L EDP:108934

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade HTi10
Order Number VDGX160304L
Sales unit 10
Hand L
Stock
Unit of Length I

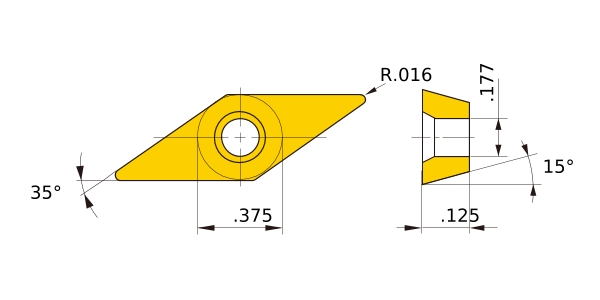

D1 .177
IC .375
EPSR 35°
GAN 25°
AN 15°
LBB .079
LE .24
S .125
RE .016
Breaker L
2D Model (DXF)
CAD data name Download
VD160304L
CAD
