Turning Insert >VNGG160404R

Turning Insert

VNGG160404R EDP:486012

Product Information

The actual product may differ from the displayed image.

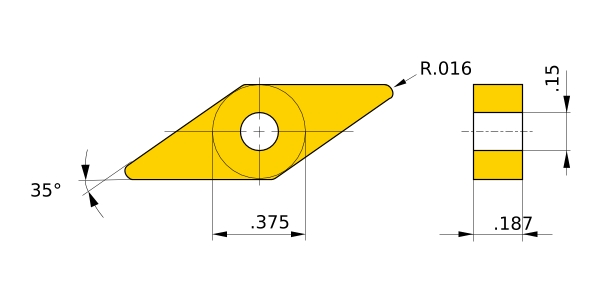

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Cermet
Grade NX3035
ANSI VNGG331R
Sales unit 10
Hand R
Stock
Unit of Length M
D1 3.81
IC 9.525
EPSR 35°
GAN 15°
LBB 1.8
LE 15.6
S 4.76
RE 0.4
Breaker R
Classification of Grades
Non-coated・Cermet NX2525
Non-coated・Carbide HTi10
Non-coated・Carbide UTi20T
2D Model (DXF)
CAD data name Download
VN160404R
