Turning Insert >WBGT1.210.5LF

Turning Insert

WBGT1.210.5LF EDP:295822

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade VP15TF
Order Number WBGT020102L-F
Sales unit 10
Hand L
Stock
Unit of Length I

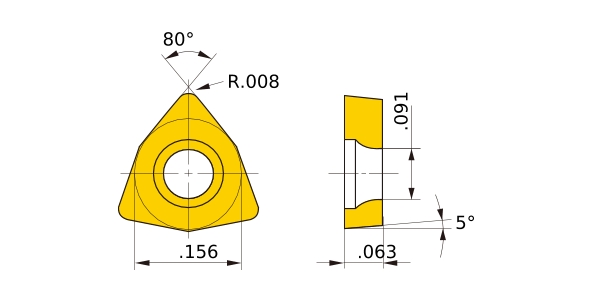

D1 .091
IC .156
EPSR 80°
GAN 13°
AN 5°
LBB .039
LE .083
S .063
RE .008
Breaker L-F
Classification of Grades
Coated・Cermet MP3025
Non-coated・Cermet NX2525
2D Model (DXF)
CAD data name Download
WB020102L
CAD
