Turning Insert >WBGT1.21V3LF

Turning Insert

WBGT1.21V3LF EDP:295865

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade VP15TF
Order Number WBGT0201V3L-F
Sales unit 10
Hand L
Stock
Unit of Length I

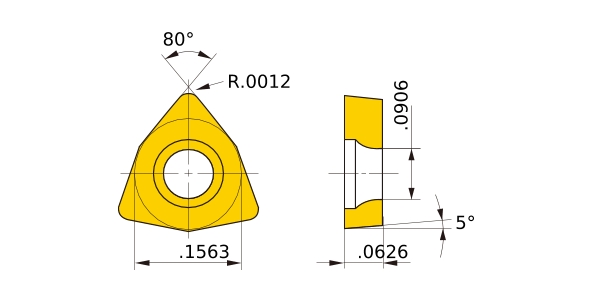

D1 .0906
IC .1563
EPSR 80°
GAN 13°
AN 5°
LBB .0394
LE .0787
S .0626
RE .0012
Breaker L-F
