Turning Insert >WBGTL30201L-F

Turning Insert

WBGTL30201L-F EDP:295881

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade VP15TF
ANSI WBGT1.51.50.2LF
Sales unit 10
Hand L
Stock
Unit of Length M

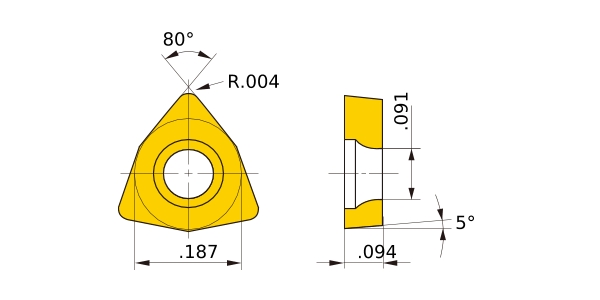

D1 2.3
IC 4.76
EPSR 80°
GAN 13°
AN 5°
LBB 1
LE 2
S 2.38
RE 0.1
Breaker L-F
