Turning Insert >WBGTL30204R-F

Turning Insert

WBGTL30204R-F EDP:296008

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade VP15TF
ANSI WBGT1.51.51RF
Sales unit 10
Hand R
Stock
Unit of Length M

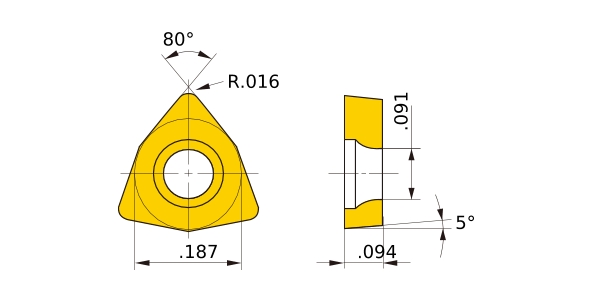

D1 2.3
IC 4.76
EPSR 80°
GAN 13°
AN 5°
LBB 1
LE 2.2
S 2.38
RE 0.4
Breaker R-F
Classification of Grades
Non-coated・Cermet NX2525
2D Model (DXF)
CAD data name Download
WBL30204R
CAD
