Turning Insert >WCMT1.51.50.5

Turning Insert

WCMT1.51.50.5 EDP:109034

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade UTi20T
Order Number WCMTL30202
Sales unit 10
Hand N
Stock
Unit of Length I

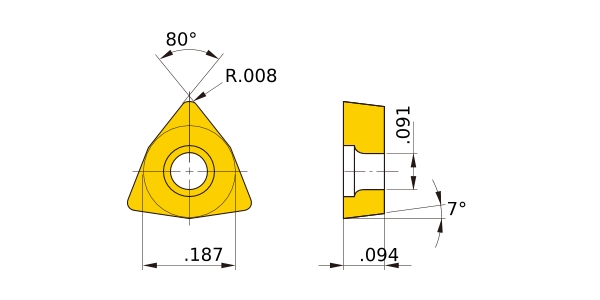

D1 .091
IC .187
EPSR 80°
AN 7°
S .094
RE .008
Breaker standard
Classification of Grades
Coated・Carbide US735
Coated・Cermet MP3025
Coated・Cermet AP25N
Non-coated・Cermet NX2525
Non-coated・Cermet NX3035
Non-coated・Carbide RT9010
2D Model (DXF)
CAD data name Download
WCL30202N
CAD
