Turning Insert >WNMG543GJ

Turning Insert

WNMG543GJ EDP:209841

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade RT9010
Order Number WNMG100612-GJ
Sales unit 10
Hand N
Stock
Unit of Length I

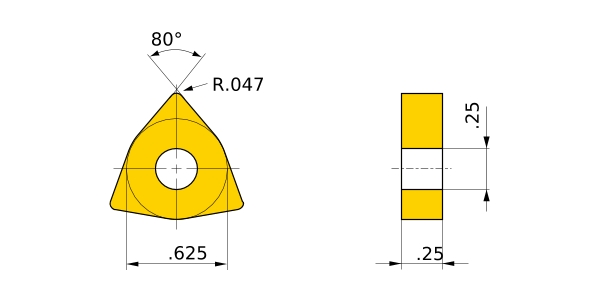

D1 .25
IC .625
EPSR 80°
S .25
RE .047
Breaker GJ
Classification of Grades
Coated・Carbide VP10RT
2D Model (DXF)
CAD data name Download
WN100612N
CAD
