Turning Insert

CNG433 EDP:284939

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Solid CBN
Grade MBS140

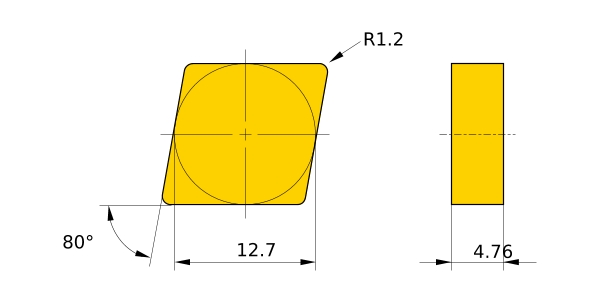

Order Number CNGN120412
Sales unit 1
Hand N
Stock

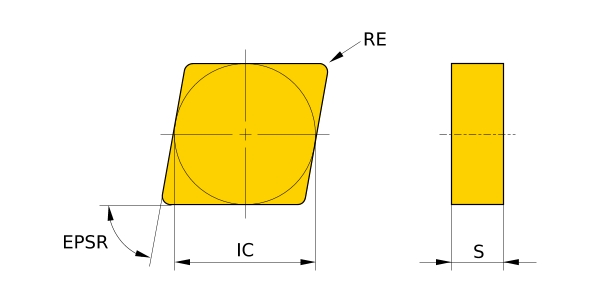

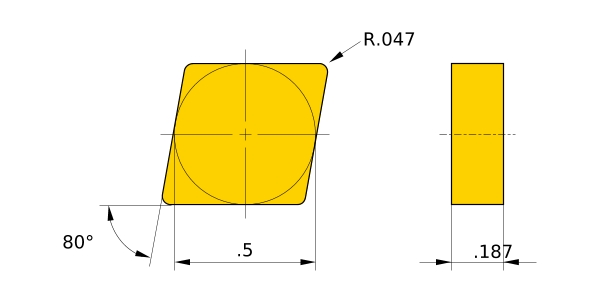

Unit of Length I
IC .5
EPSR 80°
S .187
RE .047
Breaker flat_top
2D Model (DXF)
CAD data name Download
CN120412N
