Turning Insert >SNGN090312

Turning Insert

SNGN090312 EDP:284971

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Solid CBN
Grade MBS140
ANSI SNG323
Sales unit 1
Hand N
Stock
Unit of Length M

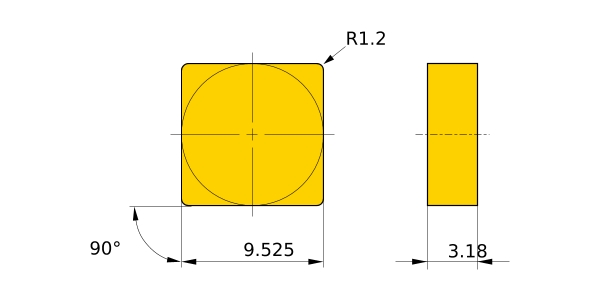

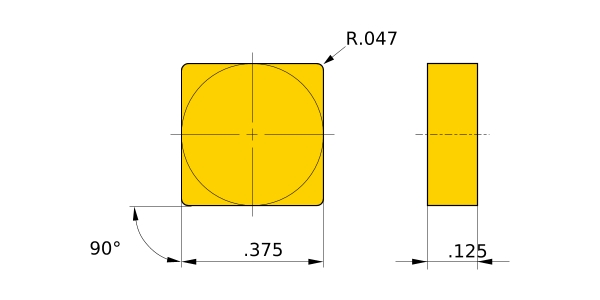

IC 9.525
EPSR 90°
S 3.18
RE 1.2
Breaker flat_top
2D Model (DXF)
CAD data name Download
SN090312N
