Turning Insert

TNG334 EDP:505949

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Solid CBN
Grade MBS140
Order Number TNGN160416
Sales unit 1
Hand N
Stock
Unit of Length I

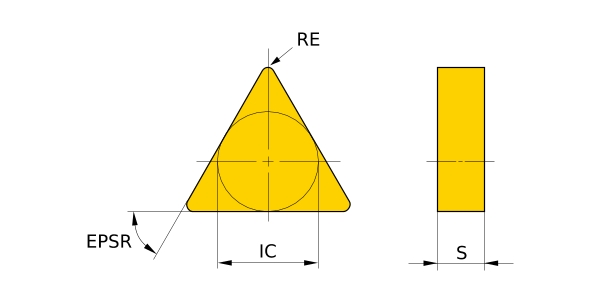

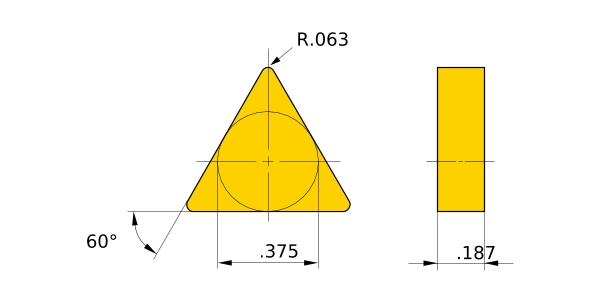

IC .375
EPSR 60°
S .187
RE .063
Breaker flat_top
