Turning Insert >VNGG330.5LF

Turning Insert

VNGG330.5LF EDP:462213

Product Information

The actual product may differ from the displayed image.

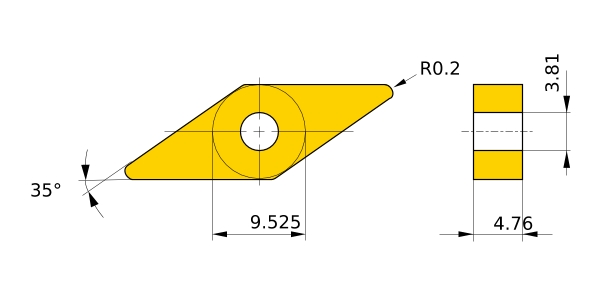

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Name of Grade Carbide
Grade VP15TF
Order Number VNGG160402L-F
Sales unit 10
Hand L
Stock

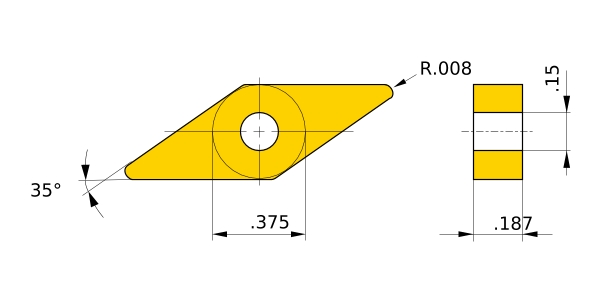

Unit of Length I
D1 .15
IC .375
EPSR 35°
GAN 15°
LBB .098
LE .291
S .187
RE .008
Breaker L-F
Classification of Grades
Coated・Cermet MP3025
Non-coated・Cermet NX2525
Non-coated・Cermet NX3035
3D Detail Model (STP,STL)
CAD data name Download
VN160402L
CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
