Turning Insert >VNGG331LF

Turning Insert

VNGG331LF EDP:462272

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Cermet
Grade NX3035
Order Number VNGG160404L-F
Sales unit 10
Hand L
Stock
Unit of Length I

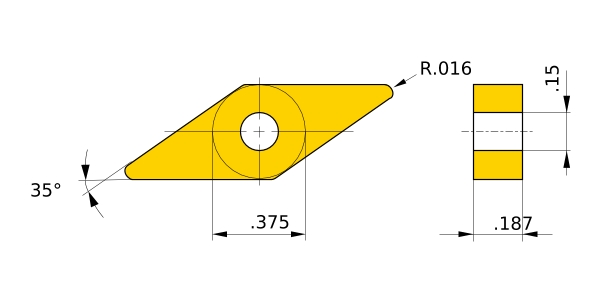

D1 .15
IC .375
EPSR 35°
GAN 15°
LBB .098
LE .299
S .187
RE .016
Breaker L-F
Classification of Grades
Coated・Carbide VP15TF
Coated・Cermet MP3025
Non-coated・Cermet NX2525
2D Model (DXF)
CAD data name Download
VN160404L
CAD
