Turning Insert >TCGT21.50.5AZ

Turning Insert

TCGT21.50.5AZ EDP:461595

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade HTi10
Order Number TCGT110202-AZ
Sales unit 10
Hand N
Stock
Unit of Length I

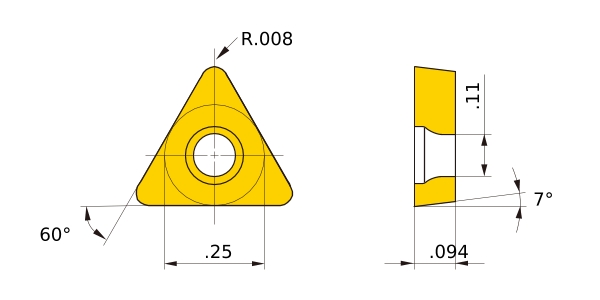

D1 .11
IC .25
EPSR 60°
AN 7°
S .094
RE .008
Breaker AZ
2D Model (DXF)
CAD data name Download
TC110202N
