Turning Insert >VPET1.51.50.2RSRF

Turning Insert

VPET1.51.50.2RSRF EDP:527021

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade VP15TF
Order Number VPET080201R-SRF
Sales unit 10
Hand R
Stock

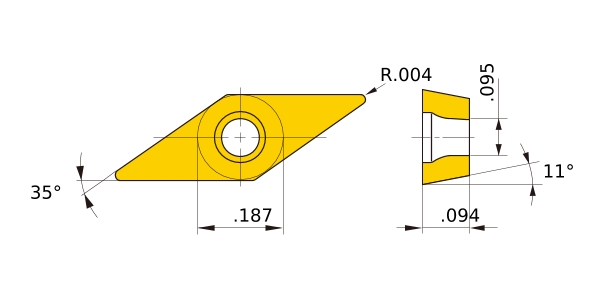

Unit of Length I
D1 .095
IC .187
EPSR 35°
GAN 13°
AN 11°
LBB .031
LE .094
S .094
RE .004
Breaker R-SRF
2D Model (DXF)
CAD data name Download
VP080201R
CAD
