Turning Insert >VPET080202R-SRF

Turning Insert

VPET080202R-SRF EDP:527048

Product Information

The actual product may differ from the displayed image.

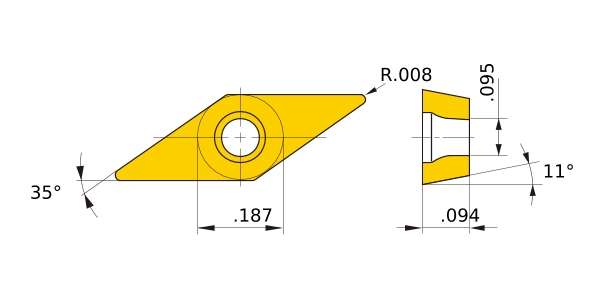

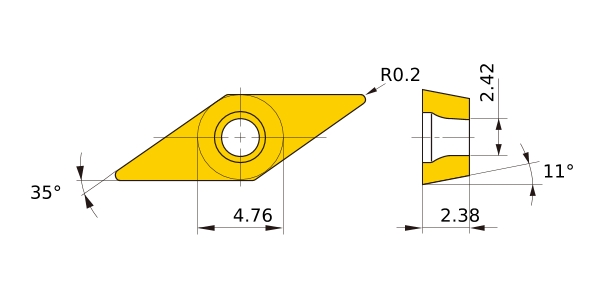

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade VP15TF
ANSI VPET1.51.50.5RSRF
Sales unit 10
Hand R
Stock
Unit of Length M
D1 2.42
IC 4.76
EPSR 35°
GAN 13°
AN 11°
LBB 0.8
LE 2.5
S 2.38
RE 0.2
Breaker R-SRF
2D Model (DXF)
CAD data name Download
VP080202R
CAD
