Turning Insert >TPMH1.81.51FV

Turning Insert

TPMH1.81.51FV EDP:537107

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Cermet
Grade NX3035
Order Number TPMH090204-FV
Sales unit 10
Hand N
Stock
Unit of Length I

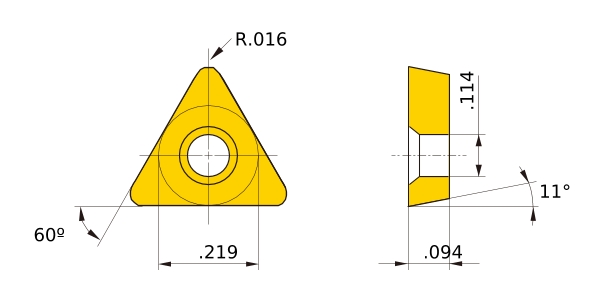

D1 .114
IC .219
EPSR 60°
AN 11°
S .094
RE .016
Breaker FV
Classification of Grades
Coated・Carbide MC6125
Coated・Carbide MC6135
Coated・Carbide MP9025
Coated・Carbide VP15TF
Coated・Carbide VP30RT
Coated・Cermet MP3025
Non-coated・Cermet NX2525
