Turning Insert >CSVTB12AR-B

Turning Insert

CSVTB12AR-B EDP:266731

Product Information

The actual product may differ from the displayed image.

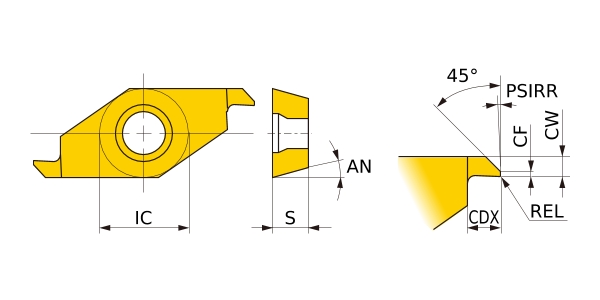

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade VP15KZ
ANSI CSVTB12AR-B
Sales unit 5
Hand R
Stock
Unit of Length I
IC .25
AN 7°
PSIRR 5°
CDX .098
CW .047
S .094
CF .012
APMX .079
REL 0
Breaker B
Tolerance CW:±.002
Show more

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.

  • External Holder
